Specifications
| Scan Range: | ±3V |
|---|---|
| Max Current: | 300µA (Customizable up to 20 mA) |
| Current Resolution: | 100pA (Customizable from 1pA to 3µA (two ranges)) |
| Potentiostat Configurations: | WE/RE/CE and WE/RE-CE |
| Supported Protocols: | CA, LSV, CV, DPV, NPV, SVW, GAL |
| Power: | 5VDC, 20mA max (LED on) |
| Size: | 14x19x5.6 mm³ (without pins) / 21x19x5.6 mm³ (with pins) |
| Connector Layout: | 7x18mm, 26 pin SMD connector vertical mount or 12x24mm, 13 pin SMD connector horizontal mount |
| Manufacturing Period: | 2023 – Active |

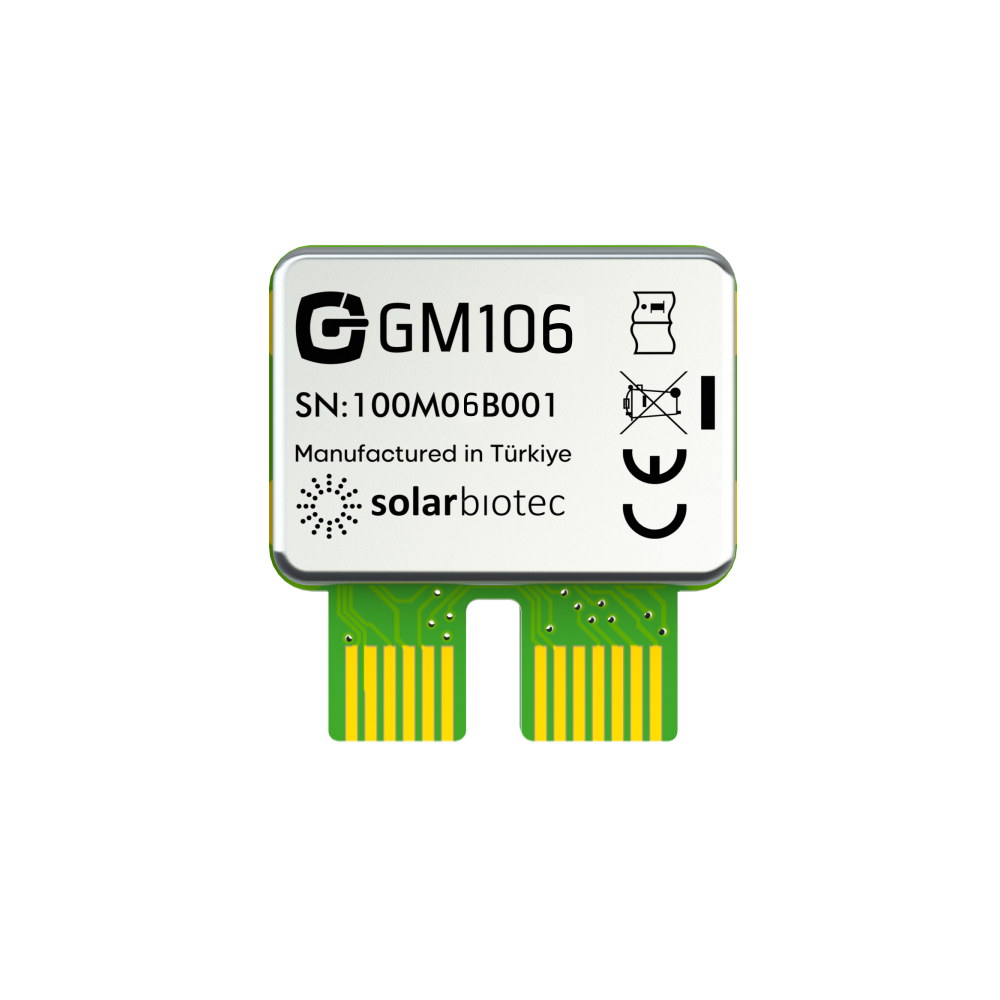

GM106
Potentiostat
100M06.000
±3V, 100pA (from 1pA), 300µA max (up to 20mA max)
GX106 is another low-cost member of the GM100 OEM Series modules suitable for dedicated volume applications. It is capable of performing all popular Amperometric and Voltammetric electrochemical protocols and has slightly improved in gain setting, so less limited in resolution vs. maximum current to be measured when compared to GM105. It has two range settings that can be customised to the application to serve the best performance. GM106 also has an extended Voltage scan range but does not support Electrochemical Impedance Spectroscopy, Open Circuit Potential measurements and has no Bi-potentiostat capability and can be used with three electrode (WE/RE/CE) and two electrode (WE/RE-CE) setups only.
400€
Out of stock
